Beacon Mobile Applications
for Business

1. Download Test Form

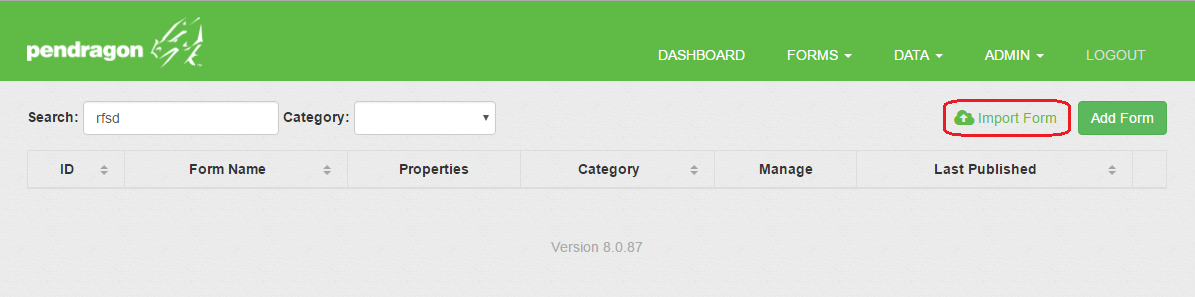

Download the Beacon Test form at the bottom of this page. Import the form into the Forms List in Pendragon Forms and then freeze and publish the form. Sync Pendragon Forms on your Android device to load the form.

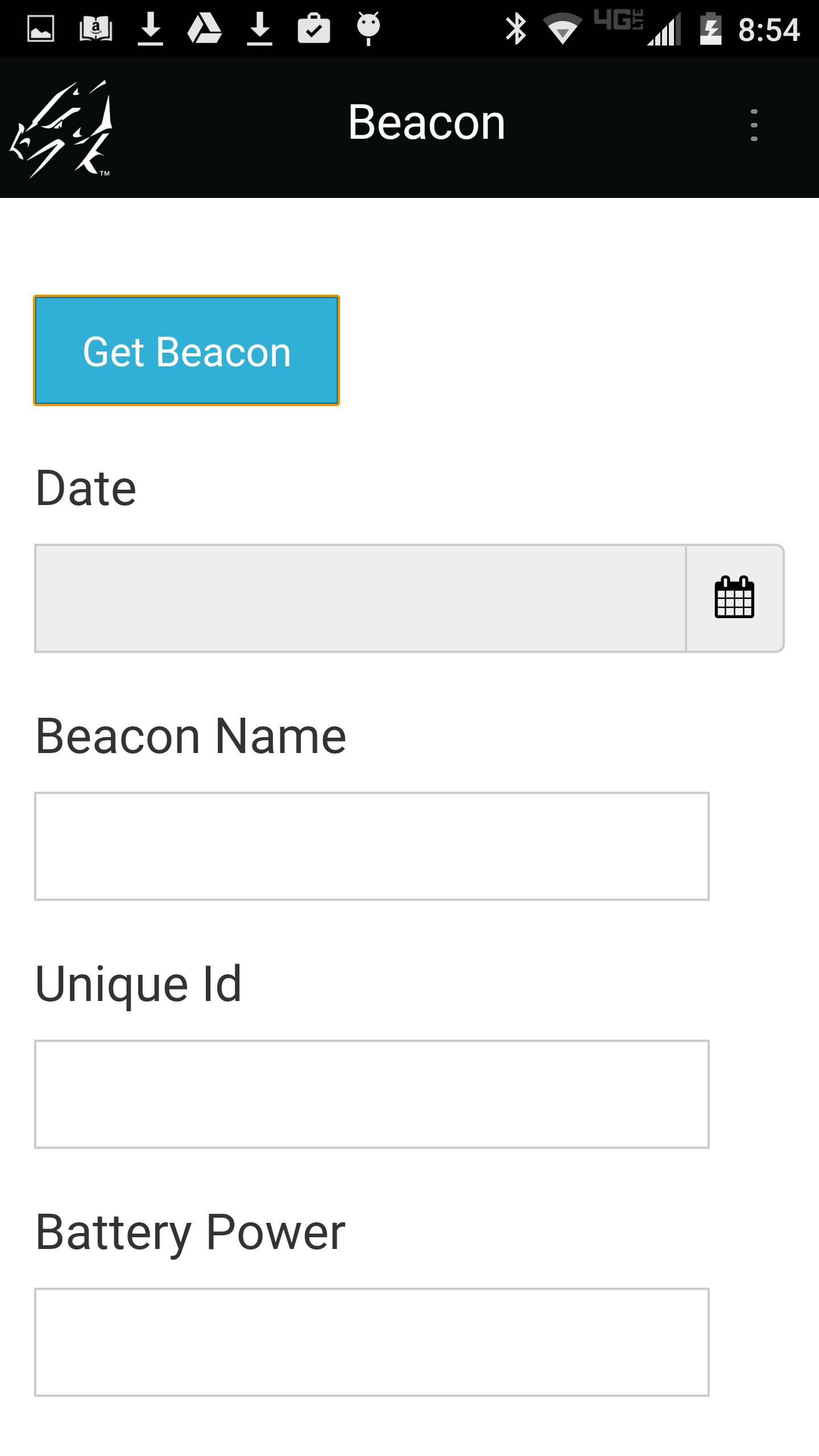

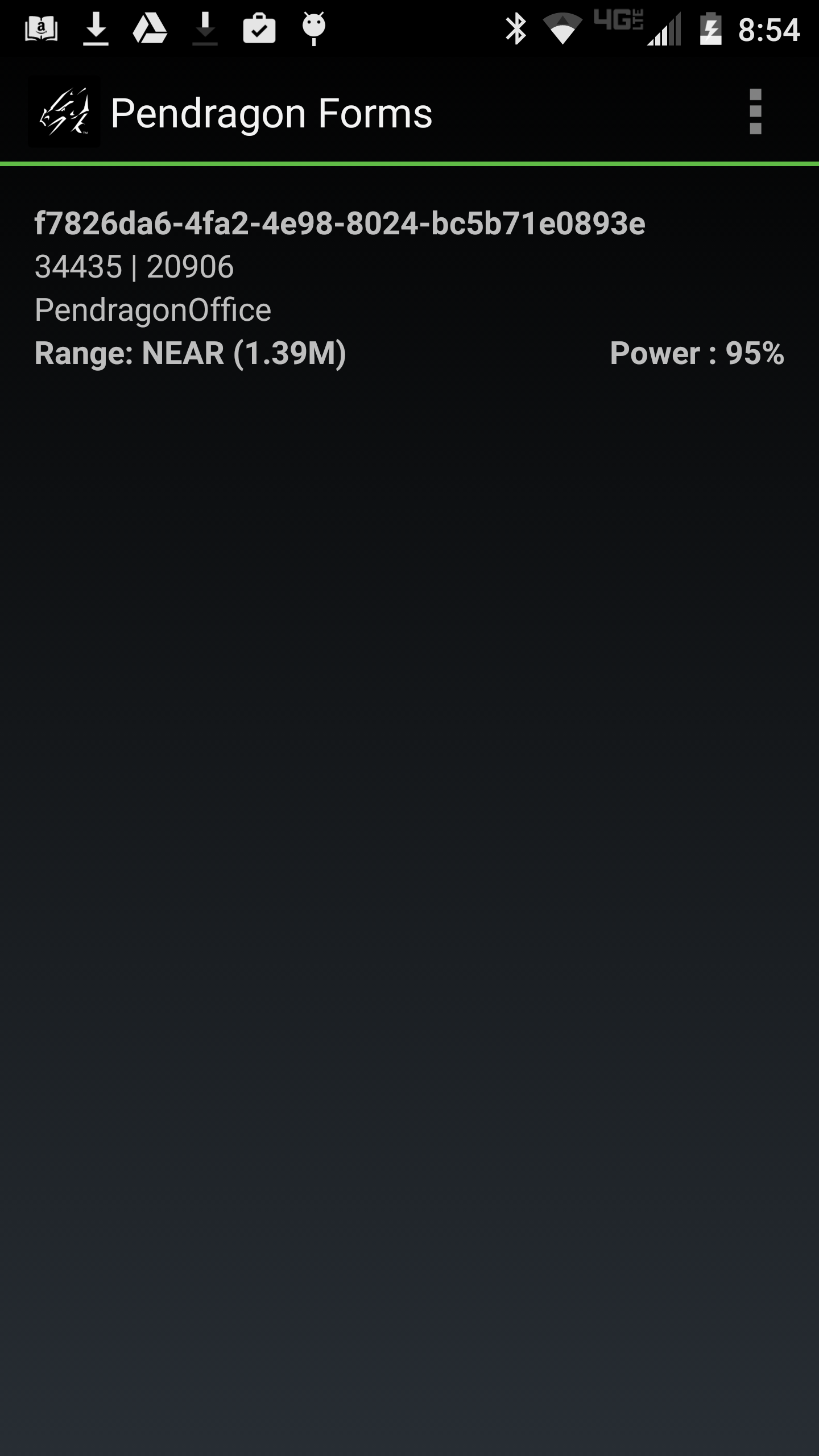

This is the script to scan for beacons via a button click event:

click:
   call "SCANIBEACONS()"

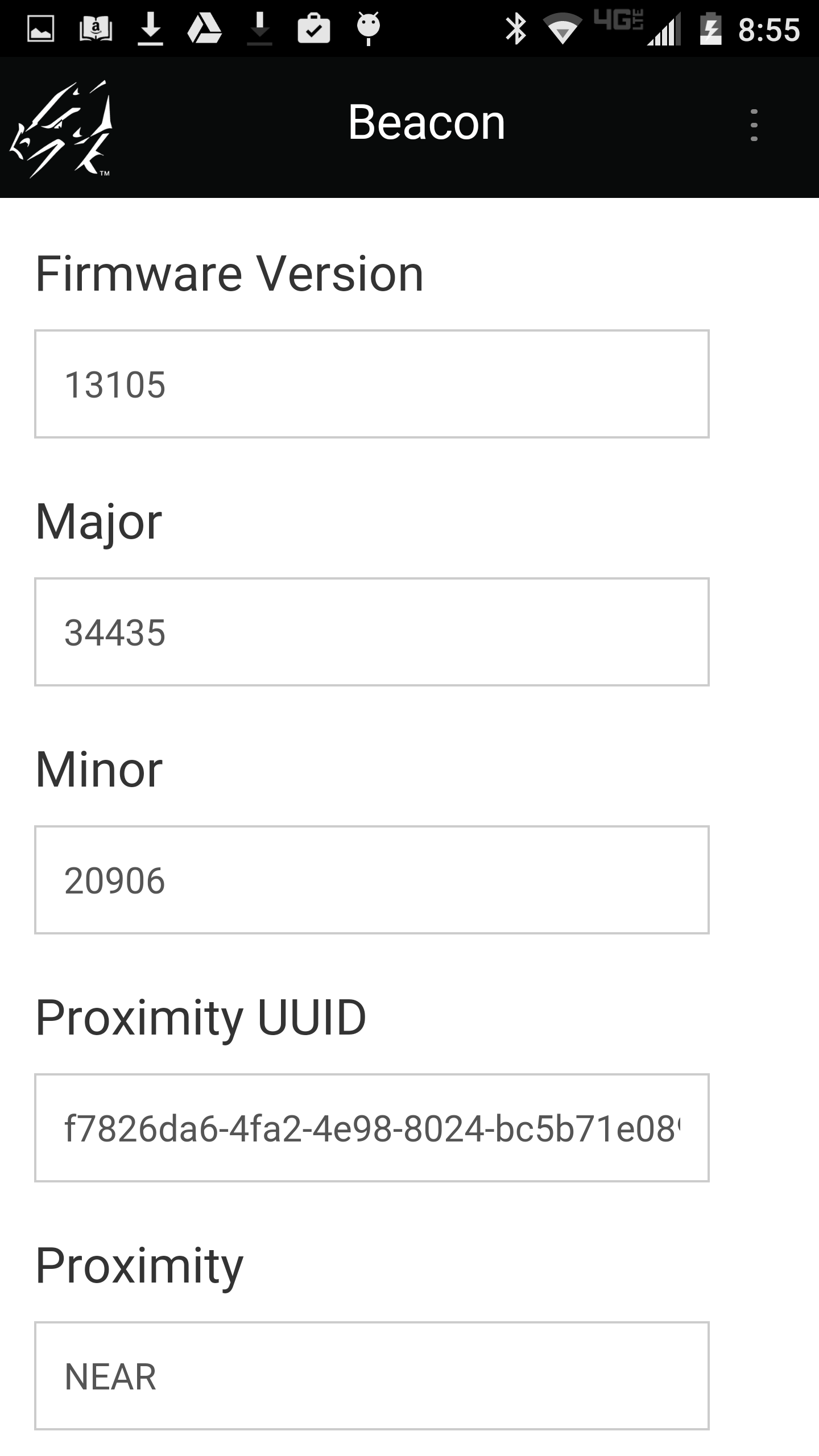

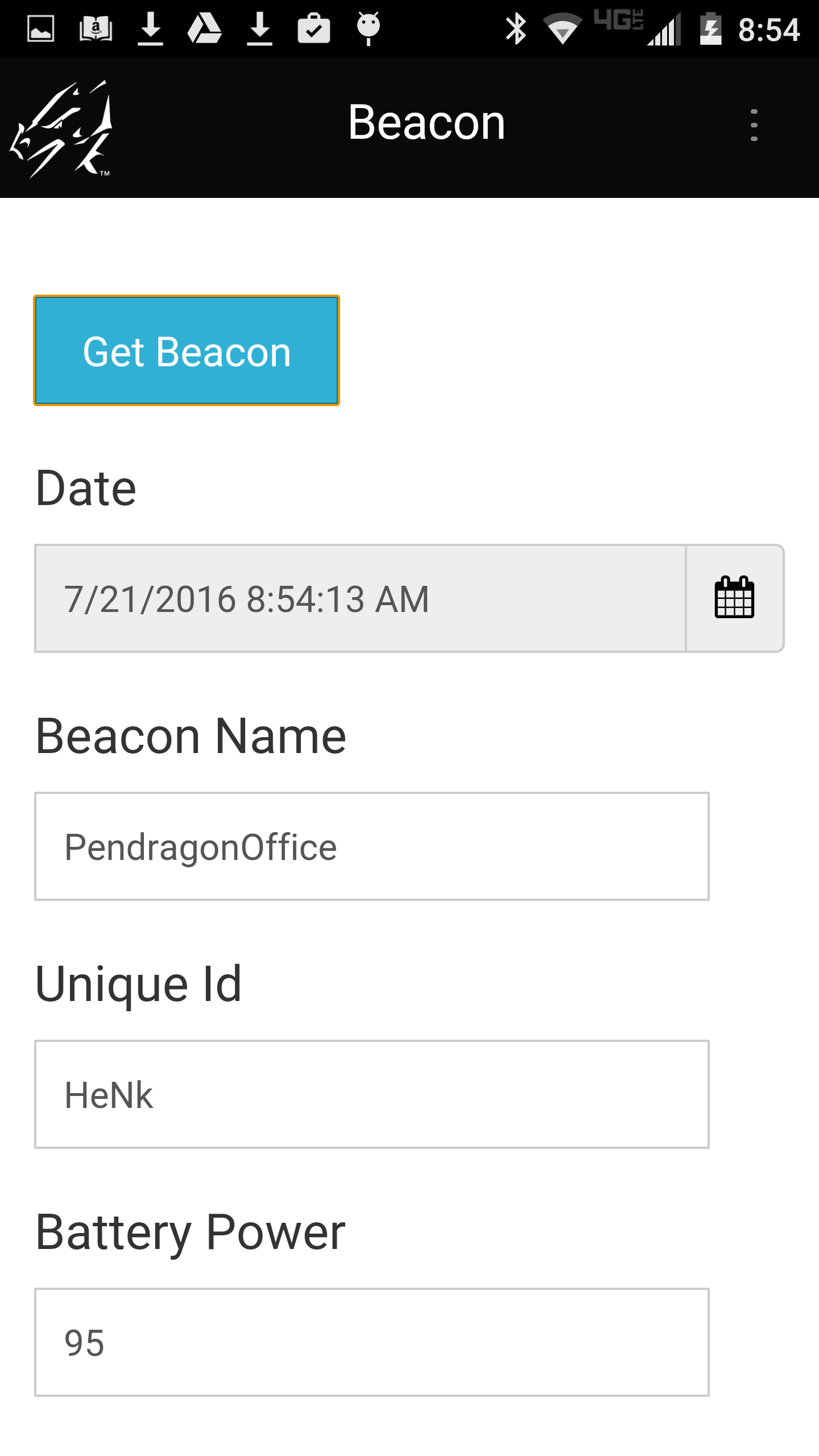

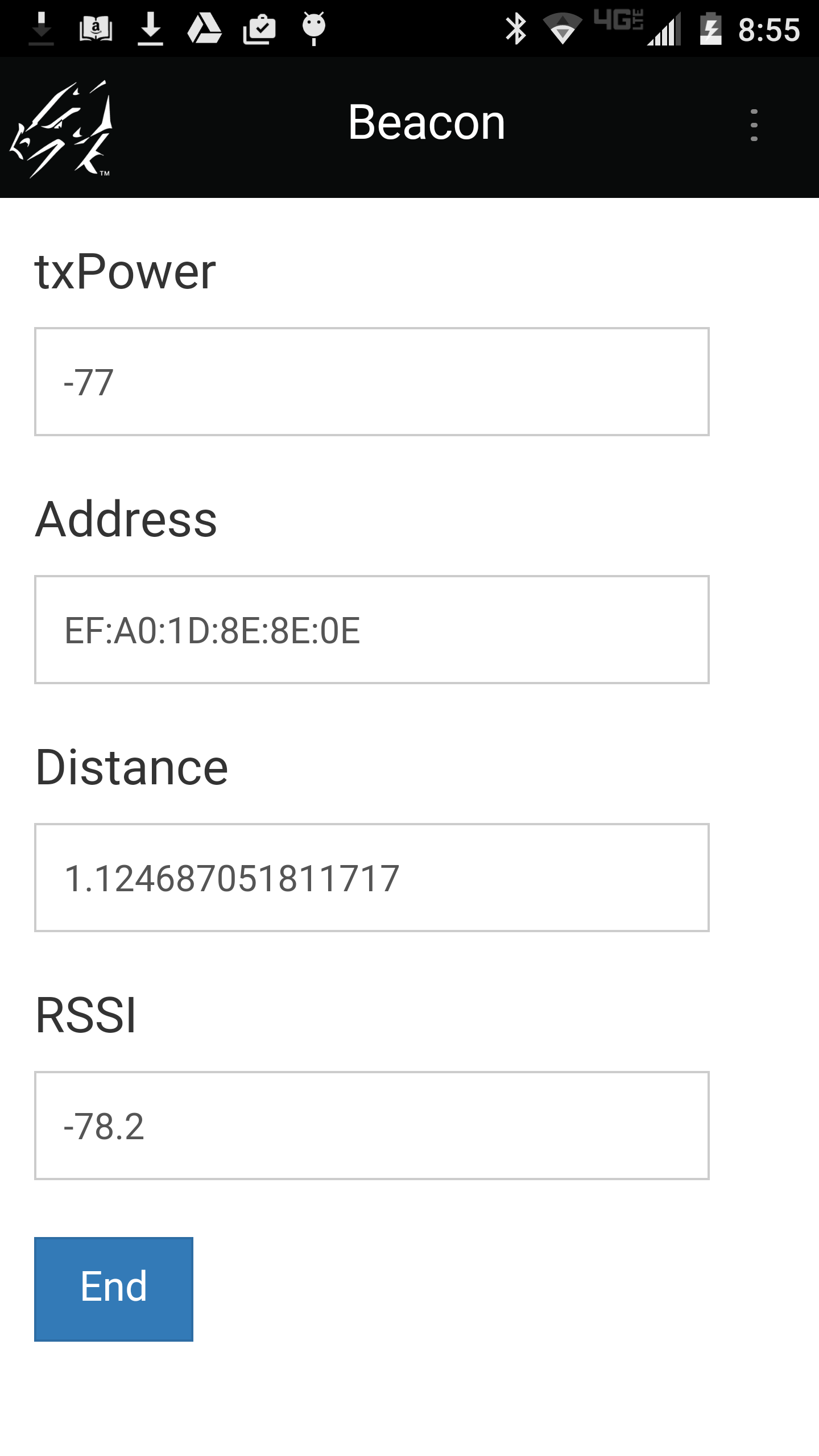

Upon selection of an beacon within proximity, use a scan event and reference the scandata variable. If the scandata variable is not 0 then there is data and you can extract individual values:

scan:
   if scandata == 0 then
      msgbox "No data?"
   else
      call "getMeasuredObject('beacon','name')"
      $[name] = scandata
      call "getMeasuredObject('beacon','uniqueId')"
      $[uniqueId] = scandata
      call "getMeasuredObject('beacon','batteryPower')"
      $[batteryPower] = scandata
      call "getMeasuredObject('beacon','firmwareVersion')"
      $[firmwareVersion] = scandata
      call "getMeasuredObject('beacon','major')"
      $[major] = scandata
      call "getMeasuredObject('beacon','minor')"
      $[minor] = scandata
      call "getMeasuredObject('beacon','proximityUUID')"
      $[proximityUUID] = scandata
      call "getMeasuredObject('beacon','proximity')"
      $[proximity] = scandata
      call "getMeasuredObject('beacon','txPower')"
      $[txPower] = scandata
      call "getMeasuredObject('beacon','address')"
      $[address] = scandata
      call "getMeasuredObject('beacon','distance')"
      $[distance] = scandata
      call "getMeasuredObject('beacon','rssi')"
      $[rssi] = scandata
   endif
